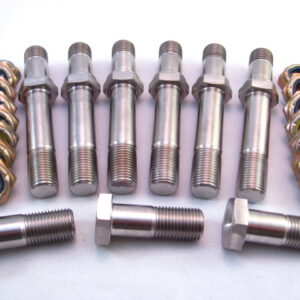

Complete Chassis Kit using ONS for Shocks and Radius Rods
Please allow 2-4 weeks for delivery.
Kit Specs
ART ONS Chassis Kit
| Item | Application | Part Description | Qty | Ti64 Part # |
| 1 | Upper Front Shock | 4.1” ONS | 2 | 5113 |
| 2 | Upper Rear Shock | 3.5” ONS | 2 | 5112 |
| 3 | Lower Rear Shock | 3” ONS | 2 | 5110 |
| 4 | Lower Front Shock | 2.25” ONS | 2 | 5114 |
| 5 | steering wheel | 5/16-18 x 0.625 Hex | 3 | 3396 |
| 6 | steering mount to frame (clamp) | 3/8-24 x 1 Hex | 2 | 1309 |
| 7 | Gen II Steering Mount | 5/16-24 x 1 Hex | 2 | 1294 |
| 8 | pitman arm pinch | 3/8-24 x 1.75 Hex | 1 | 6069 |
| 9 | Tie rod drag link | 2.52″ ONS | 4 | 5111 |
| 10 | RF steering | 1/2-20 x 1.5 Hex | 2 | 1345 |
| 11 | LF steering/caliper bracket to spindle | 1/2-20 x 2 Countersunk | 2 | 6029 |
| 12 | LF caliper to bracket | 3/8-24 x 1 Hex | 2 | 1309 |
| 13 | LF rotor | 1/2-20 x 3/4 Countersunk | 3 | 6038 |
| 14 | front axle rad rods | 1/2-20 x 1.25 Hex | 3 | 1344 |
| 15 | rad rod / Panhard | 3.5” ONS | 6 | 5112 |
| 16 | Jacobs ladder to straps (short thread) | 3/8-24 x 1.75 Hex | 2 | 1312 |
| 17 | 1/2″ clevis pin kit | 3 pins + Rue clips | 1 | 133 |
| 18 | torsion bar pinch | 3/8-24 x 1.75 Hex | 4 | 6069 |
| 19 | Torsion bar stop bolts | 7/16-20 x 2 custom | 4 | 5100 |
| 20 | torsion bar stop pinch | 3/8-24 x 1.75 Hex | 4 | 6069 |
| 21 | front motor plate | 3/8-24 x 1 Hex | 2 | 1309 |
| 22 | rear motor bolt (bottom) | 3/8-16 x 1 Hex | 4 | 1106 |
| 23 | rear motor plate (to frame) | 3/8-24 x 2.25 Hex | 4 | 3716 |
| 24 | motor plate top bolts | 3/8-16 x 1.25 Hex | 2 | 1107 |
| 25 | torque ball housing | 3/8″-16 x 1 Socket | 6 | 4780 |
| 26 | torque tube stud | 3/8 x 2 custom | 6 | 6042 |
| 27 | bell crank | 1/4-28 x 1.5 Hex | 1 | 1281 |
| 28 | brake pedal bot | 3/8-24 x 2 Hex | 1 | 1313 |
| 29 | brake pedal top and master cylinder | 5/16-24 x 2.25 Hex | 3 | 3710 |
| 30 | inboard rear brake rotor bolts | 5/16-18 x 1.25 Button | 8 | 5246 |
| 31 | inboard rear caliper mount | 7/16-14 x 1.5 Hex | 2 | 1125 |
| 32 | wing cylinder to frame | 3/8-24 x 1 Hex | 1 | 1309 |
| 33 | wing cylinder to tree (heim) | 3/8-24 x 1 Hex | 1 | 1309 |
| 34 | wing tree to wing and frame | 3/8-24 x 1.75 Hex | 2 | 1312 |
| 35 | wing tree to wing and frame | 3/8-24 x 2 Hex | 2 | 1313 |
| 36 | front wing strap to sideboard | 1/4-28 x 0.75 Hex | 4 | 1278 |
| 37 | nose wing strap to frame and post | 5/16-24 x 1.5 Hex | 4 | 1296 |
| 38 | top wing front post | 5/16-24 x 1.5 Hex | 2 | 1296 |
| 39 | floor pan | 1/4-28 x 1/2 Button | 8 | 1277 |
| 40 | fuel plate | 1/4-28 x 7/8 Hex | 12 | 1529 |
| 41 | fuel tank | 5/16-18 x 3/4 Socket | 4 | 3857 |
| 42 | nerf/bumpers | 10-32 x 1.5 Hex | 12 | 6088 |
| 43 | Throttle Pedal | ¼-28 x 3/4 Hex | 2 | 1278 |
| 44 | Top steering gear mount to frame | ¼-28 x 2 Hex | 2 | 1283 |
| 45 | ½-20 half height nyloc (steel) | 39 | 6012 | |
| 46 | 3/8-24 Jet nut | 17 | 1544 | |
| 47 | 5/16-24 Jet Nut | 9 | 1543 | |
| 48 | ¼-28 Jet Nut | 11 | 1542 | |
| 49 | #10-32 Jet Nut | 12 | 1541 | |
| 50 | 5/16-18 Stover nut | 8 | 6017 |
| Weight | 3.5 kg |
|---|
