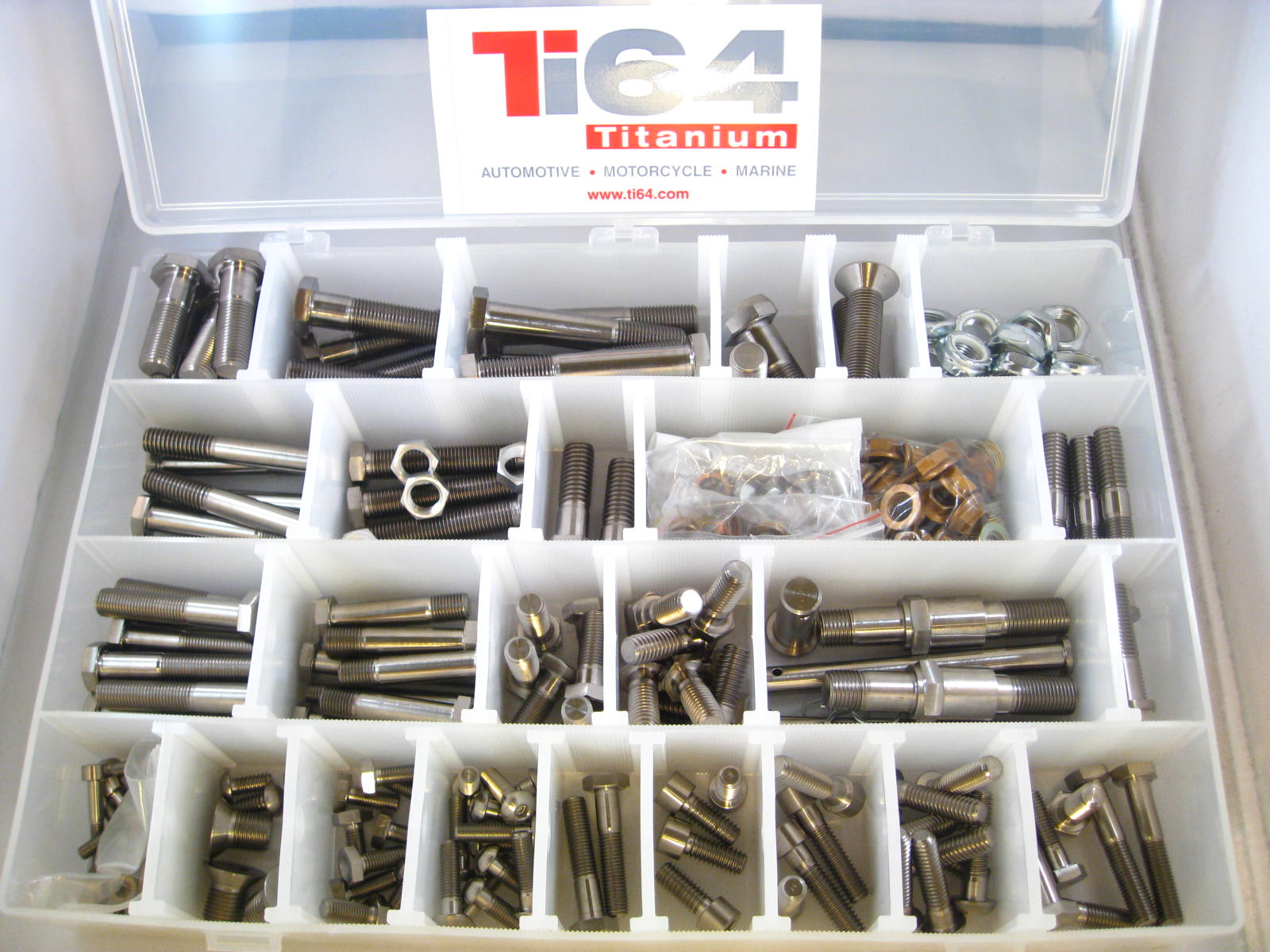

Complete Chassis Kit
Please allow 2-4 weeks for delivery.
Kit Specs
| Description | Application | Qty | Part # |
| 10-32 x 1/2″ socket | Bumpers, Nerf, wing stand and torque tube hoop | 12 | 4321 |
| 1/4-20 x 1/2″ button | wing valve to frame | 2 | 6080 |
| 1/4-28 x 5/8″ | front wing strap to sideboard, acc. Pedal, oil tank mount | 9 | 1528 |
| 1/4-28 x 7/8″ button | fuel plate | 12 | 5203 |
| 5/16-24 x 1 1/2″ | front wing strap to frame | 2 | 1296 |
| 1/4-28 x 1 1/2″ | throttle bell crank | 1 | 1281 |
| 5/16-18 x 3/4″ socket | side mount fuel tank | 4 | 3857 |
| 5/16-18 x 1 ¼ socket | bell retainer to bell housing | 4 | 3859 |
| 5/16-18 x 1 ¼ button | inboard rear brake rotor bolts | 8 | 5246 |
| 3/8-24 x 2 | brake pedal to frame | 1 | 1313 |
| 5/16-24 x 1 3/4 | wing front post | 4 | 1297 |
| 5/16-24 x 1 | steering mount | 2 | 1294 |
| 5/16-24 x 2 1/4 | brake pedal to heim on master cyl., master cyl. to frame | 3 | 3710 |
| 3/8-24 x 1 3/4 | wing tree to wing and frame | 4 | 1312 |
| 3/8-24 x 1 | steering clamp, front motor plate to frame | 4 | 1309 |
| 3/8-24 x 1 | caliper to caliper bracket | 2 | 1309 |
| 3/8-16 x 1 | bell housing to torque plate, engine to motor plate | 10 | 1106 |
| 3/8 x 1 ½ pin | ladder to clevis | 1 | 5104 |
| 3/8-16-24 x 2 stud | torque tube to rear end | 6 | 6042 |
| 3/8-24 x 2 | front and rear stops and arms pinch, pitman pinch | 9 | 1313 |
| 3/8-24 x 2 | wing cylinder to tree | 1 | 1313 |
| 3/8-24 x 2 1/2 | rear motor plate to frame | 4 | 1314 |
| 3/8-16 x 2 1/2 | engine block to frame and motor plate (top) | 2 | 1111 |
| 3/8 x 3 ¾ pin | w-link clevis pins | 2 | 5101 |
| 7/16-20 x 2 hex | adjuster stop bolts | 4 | 5100 |
| 7/16-14 x 1 1/2 | Inboard brake to rear end | 2 | 1125 |
| 1/2-20 x 1 ½ flange | radius rod to birdcage | 2 | 4997 |
| 1/2-20 x 1 1/2 | fronts and rear top shock to frame | 6 | 1345 |
| 1/2-20 x 1 1/2 | rt frt steering arm to spindle | 2 | 1345 |
| 1/2-20 x 2 | tie rod and drag link | 4 | 1348 |
| 1/2-20 ONS with spacer | lower rear shock | 2 | 5110 |
| 1/2-20 x 2 3/4 | radius rods and panhard bar | 6 | 1533 |
| 1/2-20 x 1 3/8 | front radius rods to axle | 3 | 6022 |
| 1/2-20 x 2 countersunk | combo arm to spindle | 2 | 6029 |
| 1/2-20 x 3/4 countersunk | front brake rotor | 3 | 6038 |
| 7/16-20 x 2 Al Jam nuts | 4 | 6049 | |
| 1/2-20 nylocks | 15 | 6012 | |
| 1/2″ thin washers | 3 | 6000 | |
| 3/8-24 Jet lock nuts | 24 | 1544 | |
| 3/8 thin washers | 24 | 6002 | |
| 5/16-24 half ht nylock (jet) | 11 | 1543 | |
| 5/16 washers | 20 | 6004 | |
| 1/4-28 lock nuts (jet) | 10 | 1542 | |
| 1/4″ washers | 10 | 6005 | |
| 1/2″ Rue Clip | 1 | 5435 | |
| 5/16-18 all-metal locknuts | 8 | 6017 | |
| 10-32 jet nuts | 12 | 1541 | |
| 3/8″ rue clip | 2 | 5436 |
| Weight | 3.5 kg |
|---|
