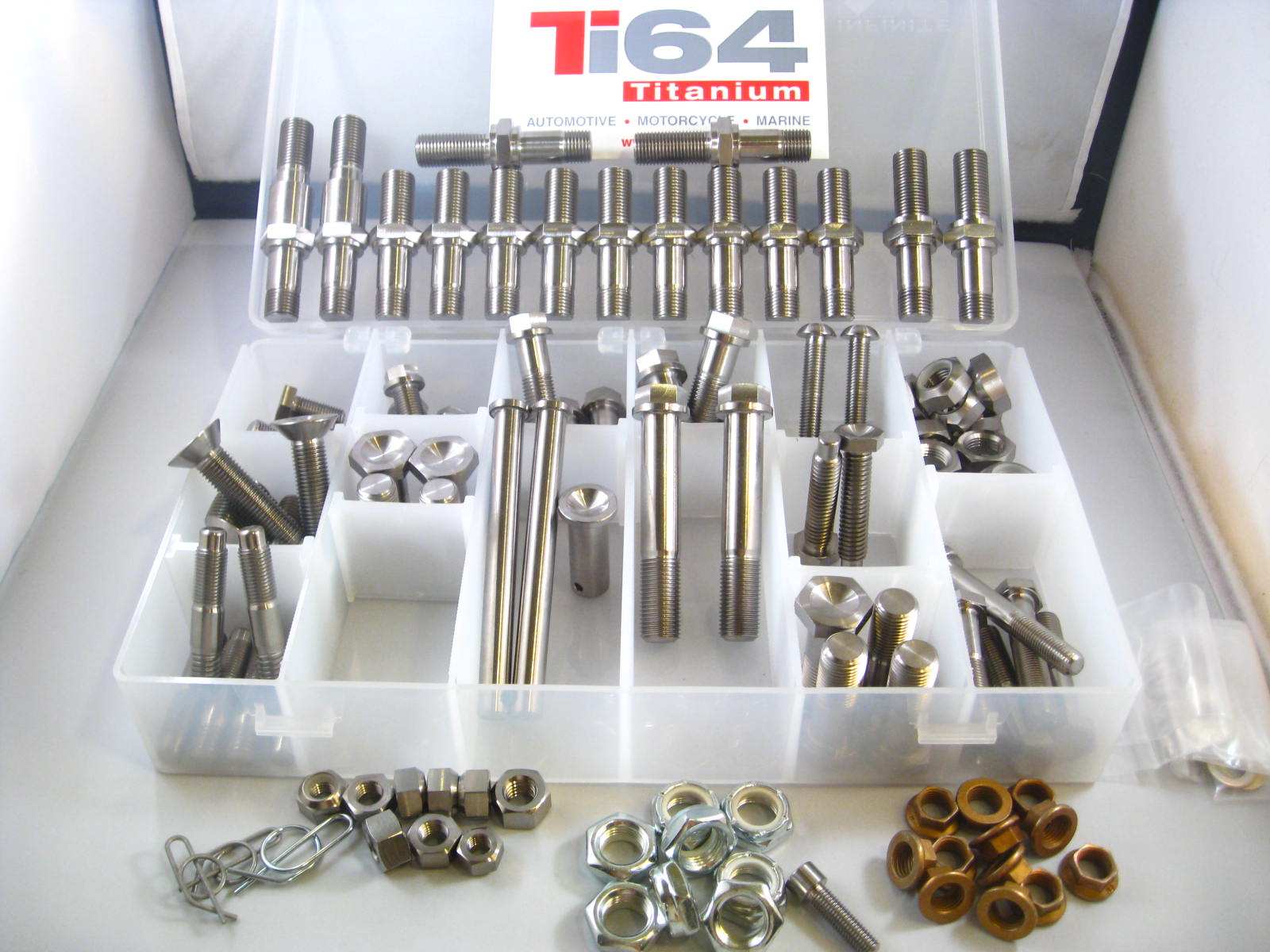

King Chassis ONS Kit as used on our very own cars
Please allow 2-4 weeks for delivery.
Kit Specs
King Midget Chassis ONS Complete Chassis Kit
| Item | Application | Part Description | Ti64 Part # | Qty |
| 1 | Shock Pins | Screw in ONS | 5114 | 5 |
| Rear lower arm ONS | 5110 | 2 | ||
| LR Upper mount 1/2″-20 x 1 3/8″ hex head | 6022 | 1 | ||
| 1/2″-20 half height Nylock | 5127 | 10 | ||
| 2 | Radius Rods/ Pan hard | Chassis ONS | 5114 | 4 |
| LR,Birdcage,Pan1/2″-20 x 1 1/2″ Flange Hex | 4997 | 4 | ||
| Axle 1/2″-20 x 1 3/8″ | 6022 | 3 | ||
| 1/2″-20 half height Nylock | 5127 | 7 | ||
| 3 | Bell Housing and Torque Tube | 3/8″ x 1.6″ stud kit w/ jet nuts | 105 | 1 |
| 4 | Jacobs Ladder | Clevis pin kit | 133 | 1 |
| 5 | Front End | Steering arms 7/16″-20 x 1 1/2″ Flange hex | 4982 | 4 |
| Steer arm 7/16″-20 x 13/4 counter sunk | 5146 | 2 | ||
| Tie rod/ Drag link ONS kit | 111 | 1 | ||
| Caliper mount 3/8″-24 x 1″ Flange hex | 4965 | 2 | ||
| Rotor mount 1/2″-20 x 3/4″ counter sunk | 6038 | 3 | ||
| 6 | Engine Plate | 1/2″-20 x 1 1/4″ hex head | 1344 | 4 |
| 7 | Steering | 1/2″ box mount 5/16″-24 x 1″ | 1294 | 2 |
| Upper mount 5/16″-24 x 2″ BHCS | 5253 | 2 | ||
| Box pinch clamp 3/8″-24 x 1″ flange hex | 4965 | 2 | ||
| Pitman Pinch 3/8″-24 x 2″ | 6076 | 1 | ||
| 5/16″-24 Ti nylock | 1400 | 4 | ||
| 3/8″-24 Ti nylock | 6041 | 1 | ||
| 8 | Brakes & Pedals | Brake pedal pivot 5/16″-24 x 2 1/2″ SHCS | 4774 | 1 |
| Master Cyl-pedal 5/16″-24 x 1 3/4″ BHCS | 5251 | 1 | ||
| Master cyl- chassis 3/8″-24 x 3/4″ Hex head | 1308 | 2 | ||
| Rear Caliper 3/8″-16 x 1 1/2″ | 1108 | 2 | ||
| 1/4″-20 x 2″, Socket Head Screw | 4156 | 1 | ||
| 5/16″-24 Ti nylock | 1400 | 2 | ||
| /8″-24 Ti nylock | 6041 | 2 | ||
| 1/4″-20 Coarse Thread, Hex Lock Nut | 1048 | 1 | ||
| 9 | Torsion Arms/ Stops | Arm/Stop Pinch Bolt 3/8″-24 x 1 3/4″ Hex head | 6069 | 4 |
| Stop Adjuster 3/8″-16 x 1 3/4 Adjuster | 6098 | 2 | ||
| 3/8″-16 Hex Nut | 1063 | 2 | ||
| 10 | Bircage | Torsion arm 1/2″-20 x 2 3/4″ Flange Hex | 5003 | 2 |
| 11 | Firewall Casting Stud 3/8″ x 1.82″ | 5106 | 6 | |
| 3/8″-16 Jet Nuts | 1544 | 6 | ||
| 12 | Washers | 1/4″ | 6005 | 2 |
| 5/16″ | 6004 | 6 | ||
| 3/8″ | 6002 | 14 | ||
| 7/16″ | 6001 | 4 |
| Weight | 3.1 kg |
|---|
