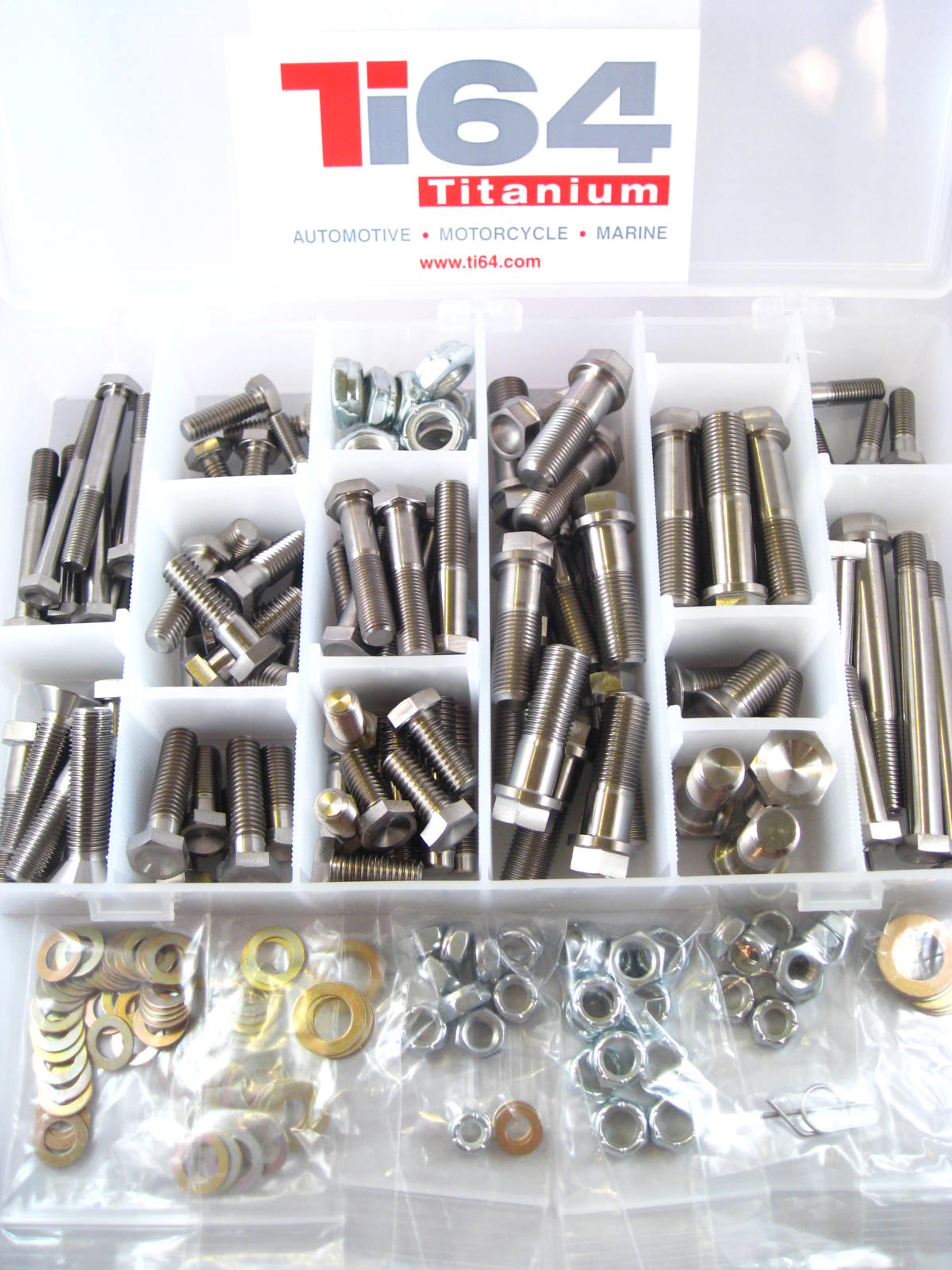

Spike Chassis Bolt kit as used by Sammy Swindell on his midgets
Please allow 2-4 weeks for delivery.
Kit Specs
| Ti 64 Titanium | Swindell-Spike Chassis Bolt Kit #219 | |||
| Item | Application | Part Description | Qty | Ti64 Part # |
| 1 | Shocks & Radius Rods | 1/2-20 X 1 1/2 Hex Flange | 13 | 4997 |
| 2 | front Axle RR | 1/2-20 X 1 3/8 Hex | 3 | 6022 |
| 3 | Front Rotor To Hub, Flat head | 1/2-20 X 1 Countersunk | 3 | 5148 |
| 4 | Btm Steering Arm To Drag Link | ONS with 5/8” thread | 1 | 6160 |
| 5 | Rear Arm shock | ONS with 1 1/8” thread | 2 | 5111 |
| 6 | Tie rod | ONS with 5/8” thread | 2 | 6160 |
| 7 | Pittman arm | ONS w/ 7/8” thread | 1 | 5114 |
| 8 | Left Front Radius Rod To Frame | 1/2-20 X 3 Hex Flange | 1 | 5004 |
| 9 | Steering Arms | 7/16-20 X 1 1/2 Hex | 4 | 1328 |
| 10 | Steering Arm Thru Brake Mount, Flat Head | 7/16-20 X 1 3/4 Countersunk | 2 | 5146 |
| 11 | Steering Box Clamp | 3/8-24 X 1 hex | 2 | 1309 |
| 12 | Caliper To Rear End | 3/8-16 X 1 1/2 hex | 2 | 1108 |
| 13 | Jacobs Ladder | 3/8 -24 X 3 ½ hex | 2 | 1316 |
| 14 | Jacobs Ladder | 3/8 X 1.3 clevis pin | 1 | 5102 |
| 15 | Jacobs Ladder | 3/8 – 24 X 1 3/4 hex, short thread | 2 | 1312 |
| 16 | Torque Tube | 3/8 Studs | 6 | 5105 |
| 17 | Torque Ball Housing | 3/8 –16 x 7/8 hex | 6 | 3399 |
| 18 | Torque Ball Housing Collar | 5/16 – 18 x 1 hex | 4 | 1091 |
| 19 | Master Cylinder, 1/2 Box Mount | 5/16-24 X 7/8 hex | 4 | 1530 |
| 20 | Upper Steering Mount | 5/16-24 X 1 3/4 | 2 | 1297 |
| 21 | Engine Plate (6) , Brake pedal (1) | 5/16-24 X 2 1/4 hex | 6 | 3710 |
| 22 | Brake Pedal to master Cylinder | 5/16-24 x 1 ¾ hex | 2 | 1297 |
| 23 | Throttle Pedal | 1/4-28 X 2 3/4 hex | 1 | 3705 |
| 24 | Panhard Clamp | ½ – 20 x 1 ½ hex | 1 | 1345 |
| 25 | Front Motor Mount | 3/8-24 x ¾ hex | 1 | 1308 |
| 26 | Front Motor Mount | 7/16-14 x ¾ hex | 2 | 1122 |
| 27 | Rear Motor Bolts | 3/8-16 x 1 ¼ hex | 4 | 1107 |
| 28 | Pinch-Rear Arms, Pittman Arm, Stops | 3/8-24 x 1 ¾ hex | 5 | 6069 |
| 29 | Bumper and Nerf Bars | 3/16-32 x 1 3/8 hex | 16 | 6158 |
| 30 | Steering Wheel | 5/16-18 x 5/8 button | 3 | 5441 |
| 31 | Stop adjuster bolts | 3/8-16 x 1.5” bullet nose | 2 | 6098 |
| 32 | Front Wheel studs | 3/8-16 x 1 hex bullet nose | 10 | 6161 |
| 33 | Front wheel nuts | 3/8-16 Flange nuts | 10 | 5107 |
| 34 | Fuel Tank Plate | ¼-28 x ¾” hex | 12 | 1278 |
| 35 | Rear Rotor | 5/16″-18 x 1-1/4″ button head | 6 | 5246 |
| 36 | 5/16″-18 All metal Ti Locknut | 6 | 6201 | |
| 37 | 1/2 AN Thin Washer | 10 | 6000 | |
| 38 | All-Ti 1/2-20 half height locknut | 10 | 6223 | |
| 39 | 7/16 AN Thin | 4 | 6001 | |
| 40 | 3/8 AN Thin Washer | 28 | 6002 | |
| 41 | 3/8-24 Nylocks | 6 | 6014 | |
| 42 | 5/16 AN Thin Washer | 38 | 6004 | |
| 43 | 5/16-24 Nylock | 9 | 6015 | |
| 44 | 3/8-24 Jet Nut | 6 | 1544 |
| Weight | 3.1 kg |
|---|
