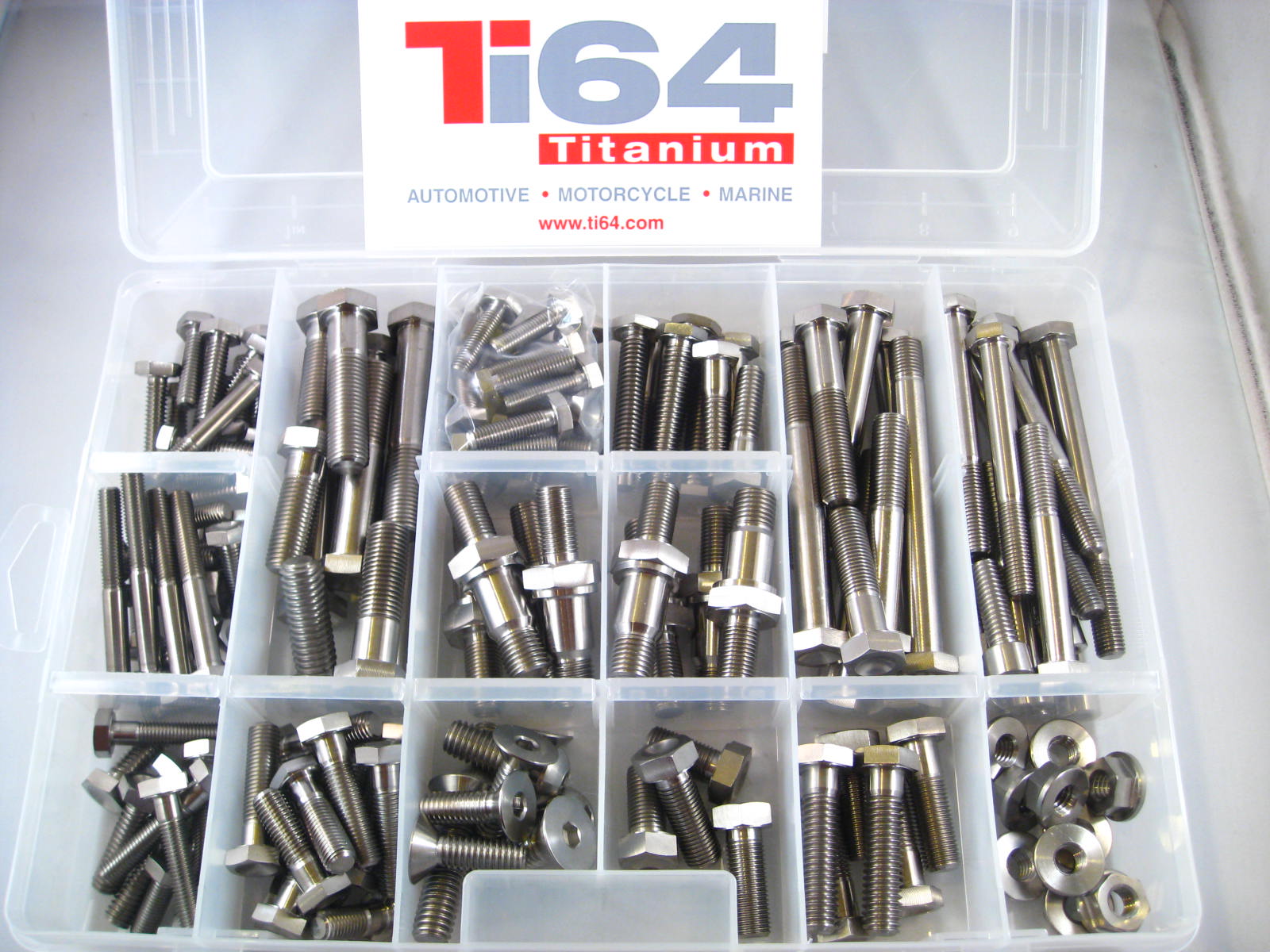

Complete Bolt Kit for Stallard Chassis
Please allow 2-4 weeks for delivery.
Kit Specs
Stallard Micro Sprint Chassis Bolt Kit ( 55.5 oz. weight savings versus steel parts! )
| Item | Application | Part Description | Qty | Ti64 Part # |
| 1 | Fuel Plate | 1/4x28x7/8 | 12 | 5203 |
| 2 | Wing post | 1/4x28x1 1/4 | 2 | 1280 |
| 3 | Rod End to Pedal | 1/4x28x3/4 | 1 | 1278 |
| 4 | Wing Motor | 1/4x28x1 1/4 | 1 | 1280 |
| 5 | Jacobs Ladder End | 1/4x28x1 1/4 | 2 | 1280 |
| 6 | Wing Motor to Tree | 1/4x28x1 1/2 | 1 | 1281 |
| 7 | Chain Block | 1/4x28x2 | 4 | 1283 |
| 8 | Brake Rotor | 1/4x28x1 (full thread) | 6 | 1279 |
| 9 | Sprocket Carrier | 1/4x20x7/8 (full thread) | 6 | 4704 |
| 10 | Beadlocks (opitional) | 1/4x20x1 | 12 | 4679 |
| 11 | Wing Tree to frame | 5/16x24x2 3/4 | 2 | 3711 |
| 12 | Chain Tensioner Wheel | 5/16x24x2 1/2 | 1 | 1299 |
| 13 | Chain Tensioner Wheel | 5/16x24x2 3/4 | 1 | 3711 |
| 14 | Wing to Wing Tree | 5/16x24x1 | 2 | 1294 |
| 15 | Steering Shaft Claps | 5/16x24x1 1/4 | 4 | 1295 |
| 16 | Torsion Arms & Stops | 5/16x18x1 1/2 | 6 | 1093 |
| 17 | Rear Torsion Arms | 5/16x18x1 1/4 | 2 | 1092 |
| 18 | Stop Adjusters | 5/16x18x1 1/2 full thrd bullet nose | 4 | 6134 |
| 19 | Master Cylinder | 5/16x24x3 1/2 | 2 | 1301 |
| 20 | Steering Rack | 5/16x24x3 | 2 | 1300 |
| 21 | Fuel Cell Bracket | 5/16x24x3/4 | 2 | 1293 |
| 22 | Left Hub bolts | 5/16x18x1 Flat Head | 3 | 5130 |
| 23 | Right Hub bolts | 5/16x18x1 allen head | 3 | 3858 |
| 24 | Fuel Cell to Frame | 5/16x18x3/4 | 2 | 1090 |
| 25 | Fuel Cell to Bracket | 5/16x18x1 | 2 | 1091 |
| 26 | Rod End to Bellcrank | 5/16x24x1 1/4 | 2 | 1295 |
| 27 | Rod End to Pedal | 5/16x24x1 | 1 | 1294 |
| 28 | Steering Wheel | 5/16x18x5/8 Button Head | 3 | 5441 |
| 29 | Upper Steering Support | 5/16x24x1 3/4 | 2 | 1297 |
| 30 | Birdcage Standoff | 5/16x18x2 1/4 Allen Head | 4 | 4177 |
| 31 | Front Wheels | 5/16×18 Smooth Flange Nuts | 10 | 3317 |
| 32 | Left Steering Arm | 3/8x24x3 1/4 | 1 | 3718 |
| 33 | Right Steering Arm | 3/8x24x2 | 1 | 1313 |
| 34 | Steering Rod to Rack | 3/8x24x1 1/2 | 1 | 1311 |
| 35 | Pan Hard to Frame | 3/8x24x2 1/4 | 1 | 3716 |
| 36 | Rods to Axle | 3/8x24x1 1/4 | 3 | 1310 |
| 37 | Rods to Frame | 3/8x24x1 | 3 | 1309 |
| 38 | Pedals to Frame | 3/8x24x3 1/2 | 1 | 1316 |
| 39 | Motor Mount to Frame | 3/8x24x2 1/2 | 4 | 1314 |
| 40 | Shifter lever | 3/8x24x2 1/2 Shoulder 1 1/4 | 1 | 1314 |
| 41 | Bell Crank to Frame | 3/8x24x2 1/2 | 1 | 1314 |
| 42 | Spindle to Arm | 3/8x16x1 1/2 | 2 | 1108 |
| 43 | Spindle to Arm Lft | 3/8x16x1-1/2 Flat Head | 2 | 6140 |
| 44 | Brake Caliper to Mount | 3/8x16x1 Button head | 2 | 5286 |
| 45 | Chain Block Bracket | 3/8x16x3/4 Flat head | 2 | 6137 |
| 46 | Left Birdcage | 7/16x20x1 1/4 | 1 | 1327 |
| 47 | Right Birdcage | 7/16x20x2 1/4 | 1 | 3722 |
| 48 | Rear Rod to Frame lft | 7/16x20x1 3/4 | 1 | 1329 |
| 49 | Rear Rod to Frame rt | 7/16x20x1 1/4 | 1 | 1327 |
| 50 | Birdcage to Arm | 7/16x20x2 1/2 (1 3/4 shoulder) | 2 | 1331 |
| 51 | Brake Rod to Frame | 7/16x20x2 3/4 | 1 | 3723 |
| 52 | Brake Rod to Bracket | 7/16x20x1 1/4 | 1 | 1327 |
| 53 | Chain Adjuster to Frame | 7/16x20x2 1/2 | 1 | 1331 |
| 54 | Chain Adjuster to Frame | 7/16x20x1 1/2 | 1 | 1328 |
| 55 | Shock Studs | 8 | 6135 | |
| 56 | Seat Belt | 3/8x24x3/4 | 2 | 1308 |
| Weight | 3.1 kg |
|---|
