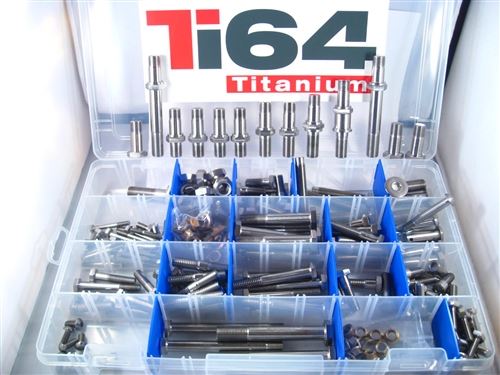

Complete Bolt Kit for Maxim Chassis as used by Sammy Swindell
Please allow 2-4 weeks for delivery.
Kit Specs
Sammy and Kevin will run this exact kit for the 2012 WoO season. We sweat every detail in its construction. It�s Ti64�s most complete Maxim Chassis bolt kit containing 192 Ti pieces including (25) �� Ti locknuts.
| Item |
Application |
Part Description |
Qty |
Ti64 Part # |
| 1 | Lower Front Shock ONS | 1/2-20×2.25 ONS | 2 | 5114 |
| 2 | Upper Front Shock ONS | 1/2-20×4.125 ONS | 2 | 5113 |
| 3 | Lower RR Shock ONS | 1/2-20×3 ONS | 1 | 5110 |
| 4 | Lower LR Shock ONS | 1/2-20×2.625 hex | 1 | 5111 |
| 5 | Steering Wheel | 1/4-28x.5 hex | 3 | 1277 |
| 6 | Steering Mount Clamp | 3/8-24×1 hex | 2 | 1309 |
| 7 | Steering Top Mount | 1/4-28×1.75 hex | 2 | 1282 |
| 8 | Lee Power Steering | 5/16-18x.75 socket | 12 | 3857 |
| 9 | Pittman Arm Pinch | 3/8-24×1.875 hex | 1 | 6129 |
| 10 | Pittman Arm ONS | 1/2-20×2 ONS | 1 | 6160 |
| 11 | Lower Steering Drag Link ONS | 1/2-20×2 ONS | 3 | 6160 |
| 12 | RF Steering Arm | 1/2-20×1.5 hex | 2 | 1345 |
| 13 | LF Steering Arm | 1/2-20×2 countersunk | 2 | 6029 |
| 14 | Front Axle Radius Rods | 1/2-20×1.25 hex | 3 | 1344 |
| 15 | Radius Rods Rear Top Shock | 1/2-20×2.625 hex | 7 | 6169 |
| 16 | Birdcage Radius Rod | 1/2-20×3.5 hex | 2 | 1351 |
| 17 | Jacobs Ladder Straps | 3/8-24×1.75 hex | 2 | 1312 |
| 18 | Jacobs Ladder Frame | 3/8-24×3.75 hex | 2 | 3719 |
| 19 | Jacobs Ladder Pin | 1/2×1.3 clevis pin | 1 | 5104 |
| 20 | Torsion Arm Pinch | 3/8-24×1.75 hex | 4 | 6069 |
| 21 | Torsion Stop Pinch Rear | 3/8-24×1.5 hex | 2 | 6172 |
| 22 | Torsion Stop Pinch Front | 3/8-24×1.875 hex | 2 | 6129 |
| 23 | Torsion Stop Adjuster | 7/16-20×2 custom | 4 | 5100 |
| 24 | Front Motor Plate | 3/8-24×1 hex | 2 | 1309 |
| 25 | Rear Motor Bottom | 3/8-16×1.25 hex | 4 | 1107 |
| 26 | Rear Motor Top | 3/8-16×2.75 hex | 2 | 3689 |
| 27 | Rear Motor Plate to Frame | 3/8-24×2.375 hex | 4 | 1314 |
| 28 | Torque Ball Housing | 3/8-16×1 hex | 6 | 1106 |
| 29 | Torque Tube Stud | 3/8×2 custom | 6 | 6042 |
| 30 | Bell Crank | 1/4-28×1.5 hex | 1 | 1281 |
| 31 | Brake Pedal Pivot | 3/8-24×1.812 hex | 1 | 6129 |
| 32 | Brake Pedal Top | 5/16-24×2.25 hex | 1 | 3710 |
| 33 | Master Cylinder | 5/16-24×2 Button | 2 | 6174 |
| 34 | RR and Inboard Rotor | 1/4-28x.75 Button | 12 | 5202 |
| 35 | Wing Cylinder to Frame | 3/8-24×1.125 hex | 1 | 1532 |
| 36 | Wing Cylinder to Tree | 3/8-24×1.625 hex | 1 | 6086 |
| 37 | Rear Wing Tree | 3/8-24x.75 hex | 4 | 1308 |
| 38 | Front Wing | 1/4-28x.75 hex | 4 | 1278 |
| 39 | Front Wing Rear to Frame | 5/16-24×1.5 hex | 2 | 1296 |
| 40 | Front and Top Wing Post | 5/16-24×1.5 hex | 4 | 1296 |
| 41 | Floor Pan | 10-32x.5 Button | 8 | 6163 |
| 42 | Floor Pan to Motor Plate | 10-32x.75 hex | 4 | 6175 |
| 43 | Fuel Tank Top Plate | 1/4-28×3/4 Button | 12 | 5202 |
| 44 | Fuel Tank Mount | 5/16-18x.75 socket | 4 | 3857 |
| 45 | Fuel Pump Clamp,Shifter, Wing Valve | 1/4-20x.5 Button | 7 | 6080 |
| 46 | Lee Steering Pump Adapter | 1/4-20x.625 socket | 1 | 6033 |
| 47 | Panhard Clamp | 1/2-20×1.75 hex | 1 | 1346 |
| 48 | Bumper and Nerf | #10-32 x 1.5� hex | 12 | 6088 |
| 49 | locknut | #10-32 jet | 24 | 1541 |
| 50 | locknut | 1/4″-28 jet | 19 | 1542 |
| 51 | locknut | 5/16″-24 jet | 9 | 1543 |
| 52 | locknut | 3/8″-24 jet | 16 | 1544 |
| 53 | Ti locknut | 1/2″-20 Ti nylock | 25 | 5127 |
| 54 | Washers | 1/4″ thin washer | 8 | 6005 |
| 55 | Washers | 5/16″ thin washer | 8 | 6004 |
| 56 | Washers | 3/8″ thin washer | 26 | 6002 |
| 57 | Washers | 1/2″ thin washer | 5 | 6000 |
| 58 | Rue Clip | 1/2″ | 1 | 5435 |
| Weight | 3.5 kg |
|---|
